Prototyping and low-volume manufacturing of silicon photonic ICs

Share your masking and processing costs with other designers to manufacture silicon photonic ICs on imec’s platform.

From telecom and datacom to sensing: many applications stand to benefit from the use of integrated circuits that use silicon photonics to combine passive and active components on a single chip.

Imec’s SOI-based integrated silicon photonics platform (iSiPP) offers you the tools to develop such a photonic integrated circuit (PIC). Through a multi-project wafer (MPW) or shared run, you can affordably manufacture small batches of these PICs by sharing costs with other designers.

Get in touch

Affordable prototyping and low-volume manufacturing through MPW or shared runs

For easy access to low volumes of silicon photonic ICs, imec.IC-link offers its MPW-service, which allows you to share masking and processing costs with other designers.

Currently, imec offers the following technologies for MPW customers:

  • iSiPP50G: 200mm (8”) platform co-integrates a wide variety of passive and active components to support a wide range of optical transceiver architectures at data rates 50Gb/s.
  • imec Si-photonics passives+ 200mm (8”) platform a subset of iSiPP50G technology, that combines passive components with metal based heater for thermal tuning.

Our MPW services are provided through the Europractice platform, where imec is one of the partners.

Want even more flexibility? We also offer low- or mid-volume dedicated runs that give you more opportunity for customization. Contact us for more information.

Get in touch

Technical details

Si Photonics iSiPP50G

The iSiPP50G platform co-integrates various passive and active components. It supports a range of optical transceiver architectures, at data rates of 25 or 50 Gb/s. You have access to integrated components such as:

  • low-loss waveguides
  • efficient vertical grating or broadband edge couplers
  • SiN waveguides and SiN-based edge couplers
  • high-speed silicon electro-optic modulators
  • high-speed silicon-germanium electro-absorption modulators
  • high-speed germanium waveguide photodetectors.
  • option for exposed waveguides (removing oxide from the top of the waveguides so exposing them to ambient).

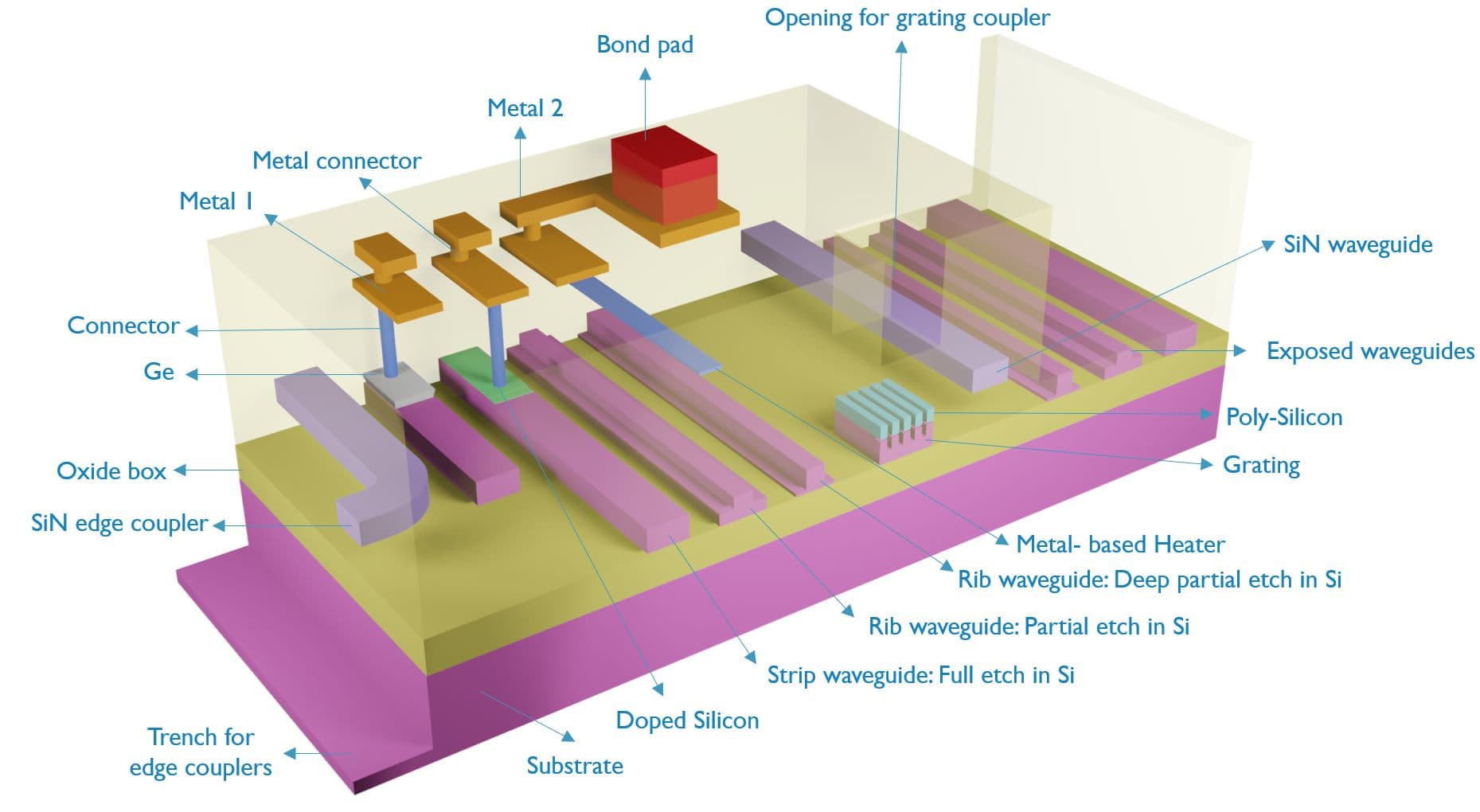

iSiPP50G cross section

ISIPP50G platform

The iSiPP50G platform offers excellent performance and design flexibility, and unrivalled critical dimension and thickness control. It’s a mature process technology (130nm) with a proven device library.

More information

Si Photonics Passives+

Si-Photonics Passives+ technology is a subset of iSiPP50G technology.

Its main features are:

  • The device layer of silicon-on-insulator wafers is etched at three different depths. This allows the combination of different photonic functions.
  • A patterned poly-silicon layer optimizes the performance of grating couplers for out-of-plane coupling to fibers.
  • A deep etched trench at an edge of the ICs, combined with edge-coupler elements, ensures optical access, with a wider optical bandwidth.
  • A layer for metal-based heaters permits thermal tuning of the optical functions.
  • Electrical access to the metal heaters is created through two supplementary levels of metal interconnects.
  • Option for exposed waveguides (removing oxide from the top of the waveguides so exposing them to ambient).
  • The imec Si-Photonics Multi Project Wafer service (MPW) serves data- and telecom applications. Although you can also come to us with designs for alternative purposes, such as sensing.

Schedule 2025

imec schedule 2025

Important notes:

  • Dates indicate deadlines for submission of the first version of the GDS file.
  • Registration for a given shuttle closes 1 month before the dates indicated on the table.
  • The administrative procedure must be finished at least 1 week before the dates indicated on the table.

Prices

Si Photonics iSiPP50G

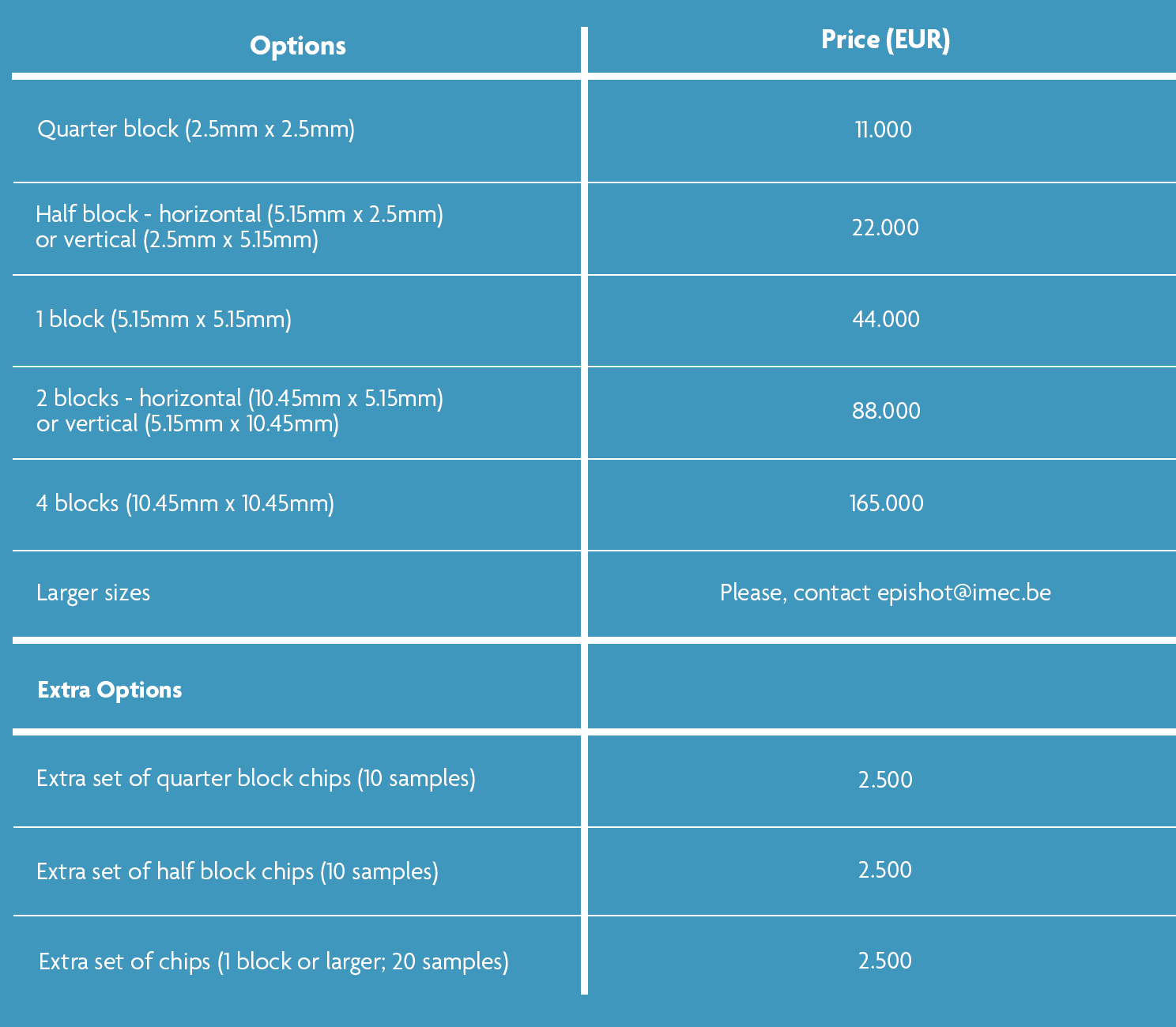

Prices Si Photonics iSiPP50G

Important notes:

  • There is a new process for the waveguides. Existing users, please be cautious.
  • The number of prototypes in a normal order depends on the design size: 20 for 1 block or more, 10 for a half block or less.
  • Because of typical MPW logistics, we may sometimes deliver more chips than ordered.

Si Photonics Passives +

Prices Si Photonics Passives plus

Important notes:

  • There is a new process for the waveguides. Existing users, please be cautious.
  • The number of prototypes in a normal order depends on the design size: 20 for 1 block or more, 10 for a half block or less.
  • Because of typical MPW logistics, we may sometimes deliver more chips than ordered.
